Included in the TG0011-KIT
-

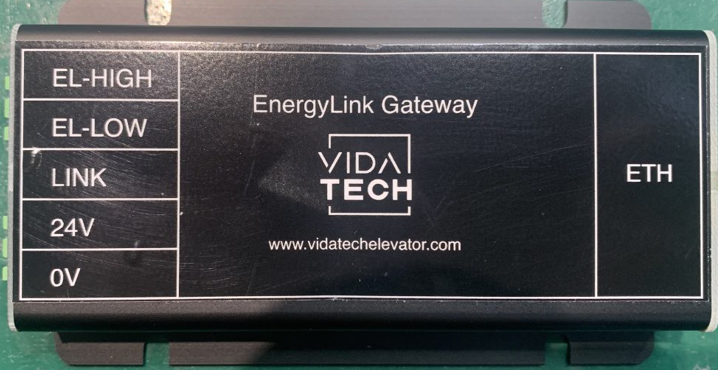

2 x Energylink Gateway (TG0011)
-
48V AC/DC Power Supply
Product Description
The Vidatech TG0011 is an Ethernet over 2-wire converter designed to transmit 10 Mbps Ethernet and PoE power over a single twisted pair. It enables data and power for IP cameras and network devices to operate over 2-wire traveling cable, eliminating the need for new Ethernet runs.
The TG0011 converts a standard RJ45 Ethernet interface into a long-range (300m) 2-wire transmission link, making it ideal for elevator systems, retrofits, and infrastructure-limited environments.
Cabling Schematic
|
Specifications |
Specifications |
|---|---|
|
Transmission distance |
Up to 300m |
|
Bandwidth |
10Mbps (1080p @30 fps) |
|
Color |
Black |
|

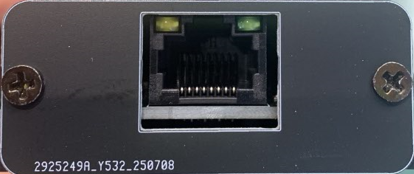

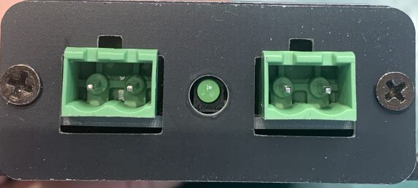

Interface |
1x2Wire + 1xRJ45 |
|
Signal |
IP Signal Over Twisted Pair Cable |
|
Power Adapter (Included) |
DC : 48V/520mA |
|
Application |
IPTV, IP Network |
|
Protocol standard |
802.3af, 10BASE-T1L |
|
LED Indicator |
Link/Data |
|
Operating environment |
Operating temperature; 0℃~ +50℃
|
|
Dimension |
120*55*25mm |
