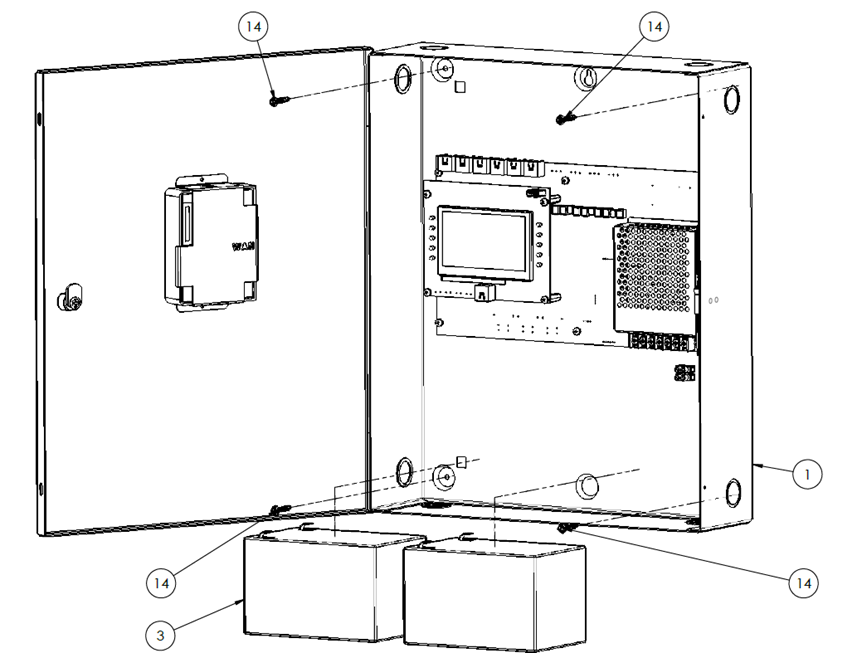

1. Mount the enclosure on the wall
-
Mount the enclosure securely to the wall using four screws
-
For a Low-Rise, it must be located < 50ft from the TG1132 (Gateway)
-
For a High-Rise, it must be located < 50ft from the TP1002 (Lobby phone)
2.2 Wiring type 2
